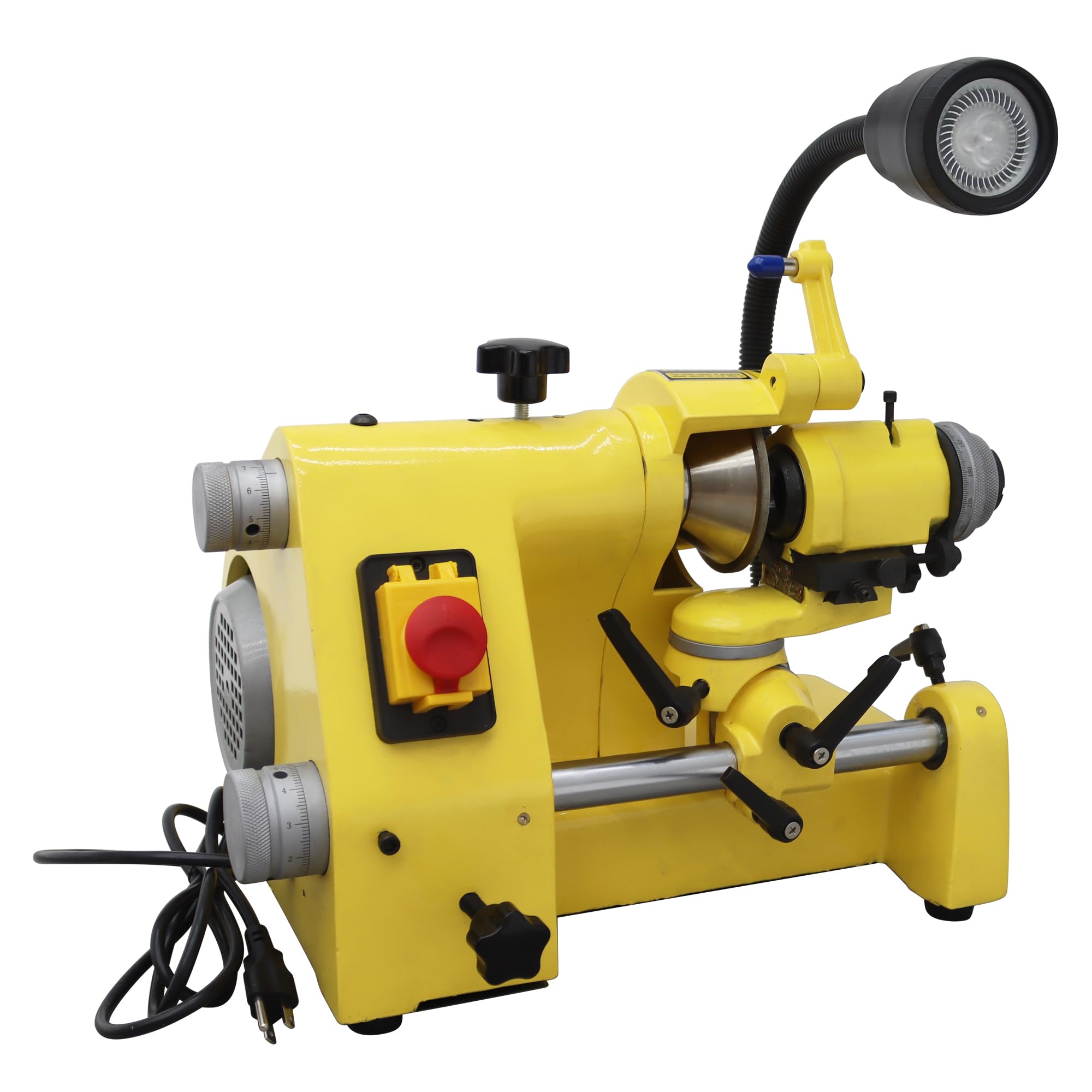

5C Universal Cutter Grinder Sharpener - Multi-functional Sharpening Tool for Drill Bits, Lathe Bits & Cutters with Accessories - Perfect for DIY Projects, Metalworking & Woodworking

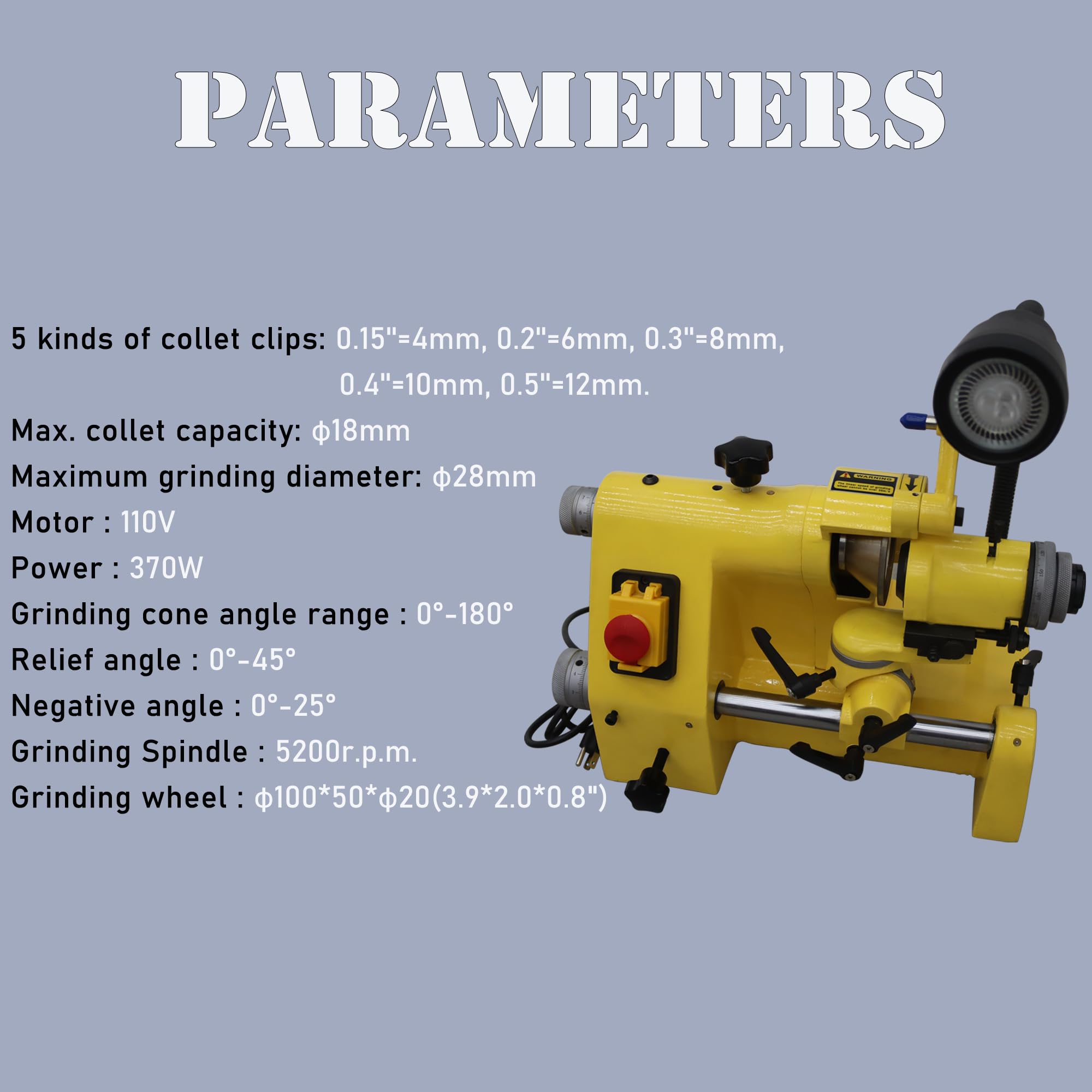

Grind turning tools within 20 * 20 High speed steel and carbide cutting tools can be fixed on attachments, and the cutting tool must be positioned by the fan shape of the attachment. The fan shape is replaceable, and its task is to clamp the cutting tool in the center position of the attachment and maintain the required height. Grinding 3-16mm milling cutter end edges and side cutters For end milling cutters, a release device is required to rotate the attachment to the desired angle, guide the horizontal movement of the rod, and adjust the positioning according to the diameter of the end milling cutter. Grind 3-8mm drill bits High speed steel and carbide cutting tools can be fixed on attachments, and the cutting tool must be positioned by the fan shape of the attachment. The fan shape is replaceable, and its task is to clamp the cutting tool in the center position of the attachment and maintain the required height. Parameter 5 kinds of collet clips 0.15''=4mm, 0.2''=6mm, 0.3''=8mm, 0.4''=10mm, 0.5''=12mm. Max. collet capacity φ18mm Maximum grinding diameter φ28mm Motor 110V Power 370W Grindingcone angle range 0°-180° Relief angle 0°-45° Negative angle 0°-25° Grinding Spindle 5200r.p.m. Grinding wheel φ100*50*φ20(3.9*2.0*0.8") More Choice for You! 5C Collets 110V Add to Cart 5C Universal Collet 110V Add to Cart Universal Collet 220V Add to Cart R8 Collet 220V Add to Cart R8 Collet 110V Add to Cart R8 Collet 220V Add to Cart Price $905.00$905.00 $849.00$849.00 $725.00$725.00 $695.00$695.00 $925.00$925.00 $1,025.00$1,025.00 Voltage 110V 110V 220V 220V 110V 220V Collets With 5 C5 collets With 5 kinds of collet clips With 5 universal collets With 5 R8 collets With 5 R8 collets With 5 R8 collets Accessory lathe,drill bit drill bit, lathe bit General accessories General accessories General accessories end mill,lathe,drill bit Grinding Spindle 5200rpm 5200rpm 5200rpm 5200rpm 5200rpm 5200rpm Grinding Dia. — — ф100mm(3.94") ф100mm(3.94") ф100mm(3.94") ф0-100mm(0-3.94")

【5 Types 5C Collets with Accessories】The multi-functional cutter grinder sharpener are equipped with 5 pcs of 5C collets. The size of the collets are 0.15inch(4mm), 0.2inch(6mm),0.3inch(8mm), 0.4inch(10mm), 0.5inch(12mm). 3 accessories for turning tool, milling cutter, bit grinding attachment are included. These accessories will help you better finish the work.

【Excellent Performance】High grinding accuracy,simple operation. Can grind a variety of similar semi-rounded or anti-cone Angle of high-speed steel, carbide engraving tools and multilateral tools.

【Copper Core Motor】Adopt strong power Copper core motor, 5200rpm High speed and high efficiency; The dense ventilation hole has strong heat dissipation, can work for a long time.

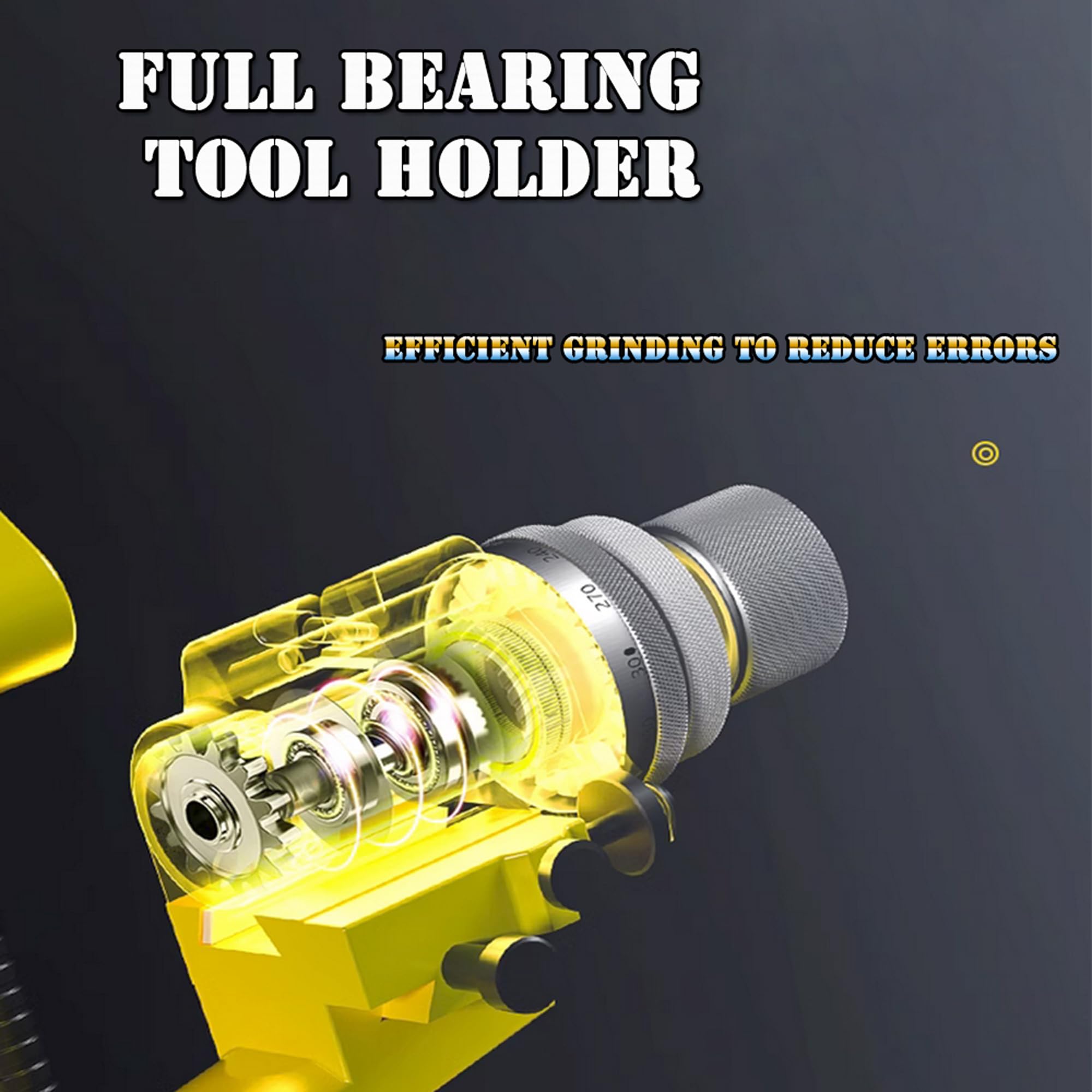

【Full bearing tool holder】The tool head is built with high quality NSK precision bearing, which can effectively ensure the sharpening efficiency and reduce the error.

【Application】It is a machine used for cutter grinding. Suitable for different kind of cutters, such as drill bit, lathe bit by using different accessories.
